Bar Feeders

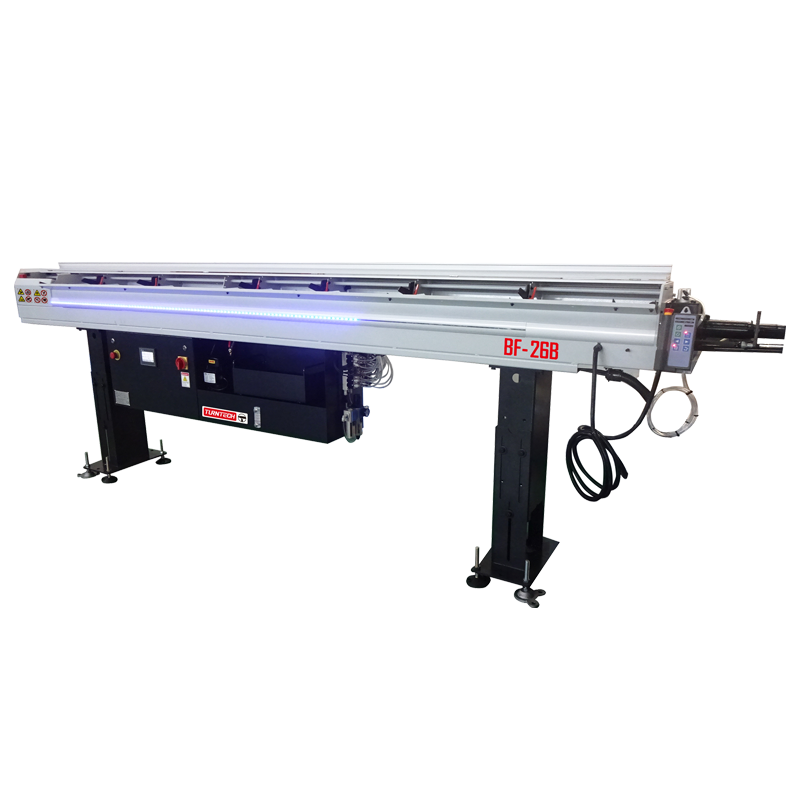

BF-20B/26B/42B

+86-139-6977-9960

Inquiry

Performance characteristics

Machine Specification

Interior view

1.It adopts intelligent PLC controller+ LED remote monitoring system, high-efficiency communication interface software programming design, can be matched with any brand of CNC lathe, stable quality, cost-effective.

2.It is in response to the demand of CNC lathe, comprehensively improve the rigid strength of the structure, in order to meet the performance requirements of the rigid strength and shockproof performance of the feeder during the processing of the CNC lathe, and effectively improve the efficiency of the feeder.

3.Adjustment-free clamp holder.

4.Composite material pipe.


MODEL

BF-20B

BF-26B

BF-42B

Bar dia.(mm)

3-20

3-26

5-42

Bar   length(mm)

2600/3100

2600/3100

2700/3200

Weight(kg)

368/390

368/390

800/900
