1. This CNC lathe, designed with FEA, integrates mechanical, electrical and hydraulic systems, featuring high precision, speed and rigidity to effectively improve production efficiency.

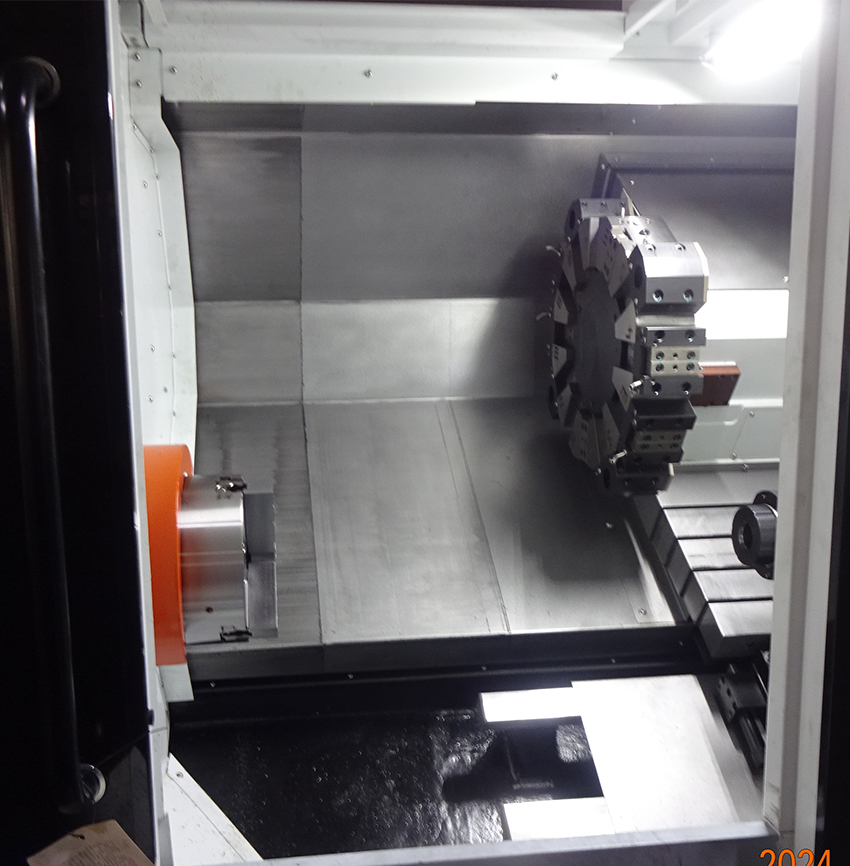

2. SBL-300 & SBL-400 (45°), SBL-500 (35°) adopt an integral slant bed structure, which brings the workpiece closer to the operator and ensures smooth chip removal. The bed is cast from high-quality resin sand, providing exceptional rigidity and shock resistance.
3. Roller linear guideways greatly enhance the machine’s accuracy and stability.
4. The spindle is equipped with precision double-row cylindrical roller bearings, improving accuracy and rigidity.
5. The spindle sleeve features a heat-dissipation design to reduce temperature rise.

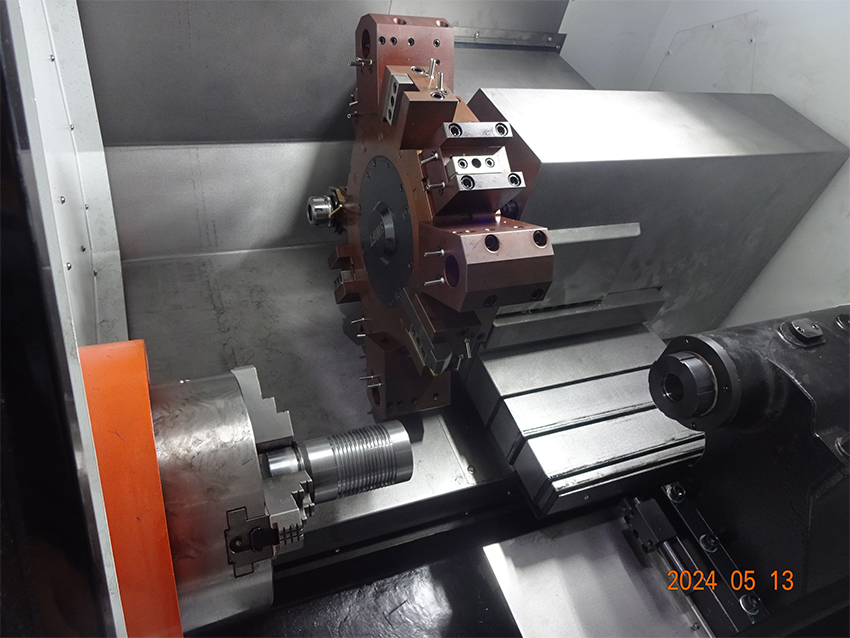

6. Servo spindle, hydraulic through-hole chuck, and hydraulic servo turret make it ideal for heavy-duty turning.

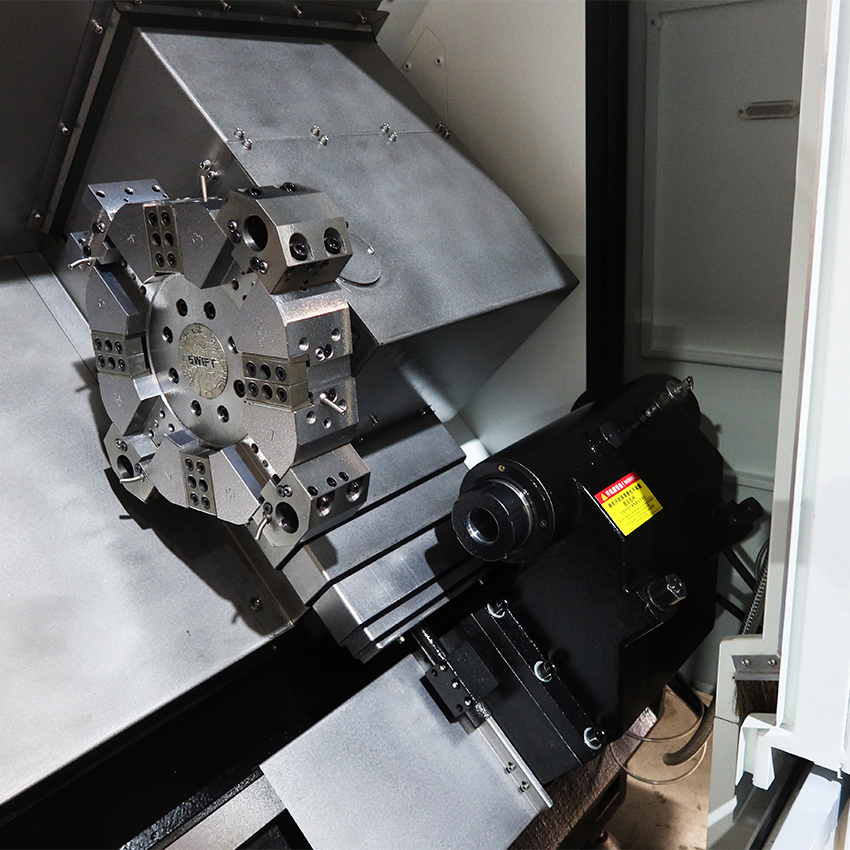

7. Hydraulic tailstock with high precision, high efficiency, and stable performance.
8. X and Z-axis servo motors are connected to ball screws via elastic couplings, ensuring high precision and rigidity.
9. Full enclosure protects all electrical components from water, oil, and metal chips.
