TC-500MY -Zhejiang Turntech CNC Machine Tool Manufacturing Co.,Ltd

1.30°integrated slant bed, step type roller linear guideway.

2.Equipped with double high-precision, high-speed spindles, enabling for outstanding machining performance.

3.The power turret has high positioning accuracy, fast indexing speed, short tool change time, and no lifting tool thereby improving processing efficiency.

4.The X/Z axis servo motor is directly connected to the precision ball screw through an elastic coupling, with high accuracy.

5.The built-in spindle, hydraulic through chuck and power turret with Y axis, suitable for short shaft and plate workpiece processing.

6.TC-500MY servo programmable tailstock, high rigidity and high accuracy.

MODEL		UNIT	TC-500MY	TC-500MSY
Capacity	Max. swing over bed	mm	500	500
	Max. swing over cross slide	mm	260	260
	Max. machining dia.	mm	250	260
	Max. turning length	mm	350	350
	Bar dia.	mm	∅45	∅45
Electro-spindle	Taper		A2-5	A2-5(main spindle)	A2-4(Sub spindle)
	Bore	mm	∅56	∅56	∅36
	Speed	rpm	50-5000	50-5000	50-6000
	Spindle power	kW	12.3	12.3	9.5
	Spindel output torque	Nm	110	110	24.3
	Chuck size	Inch	6”	6”	5”
Feed rate	X axis travel	mm	125	130
	Y axis travel	mm	±40	±40
	Z axis travel	mm	360	360
	Sub-spindle travel	mm	--	400
	X axis rapid speed	m/min	25	25
	Y axis rapid speed	m/min	10	10
	Z axis rapid speed	m/min	25	25
	X axis servo motor torque	Nm	8.9	8.9
	Y axis servo motor torque	Nm	8.9	8.9
	Z axis servo motor torque	Nm	8.9	8.9
	Sub-spindle servo motor torque	Nm	--	10
	Z1 axis servo motor torque	Nm	4.7	--
Turret	Type	T	Power turret 12(BMT45)	Power turret 12(BMT45)
Turret	Tool size	mm	20x20/∅40/ER25	20x20/∅40/ER25
Tailstock	Tailstock taper		MT.4	--
	Tailstock quill dia.	mm	∅65	--
	Tailstock travel	mm	390	--
Power source	Total rated power	KVA	22	33
Power source	Total rated current	A	48	65
Others	Overall dimensions	mm	2190x1780x1800	2190x1780x1800
Others	Weight	kg	3000	3100

Turning Centers

TC-500MY

Performance characteristics

Machine Specification

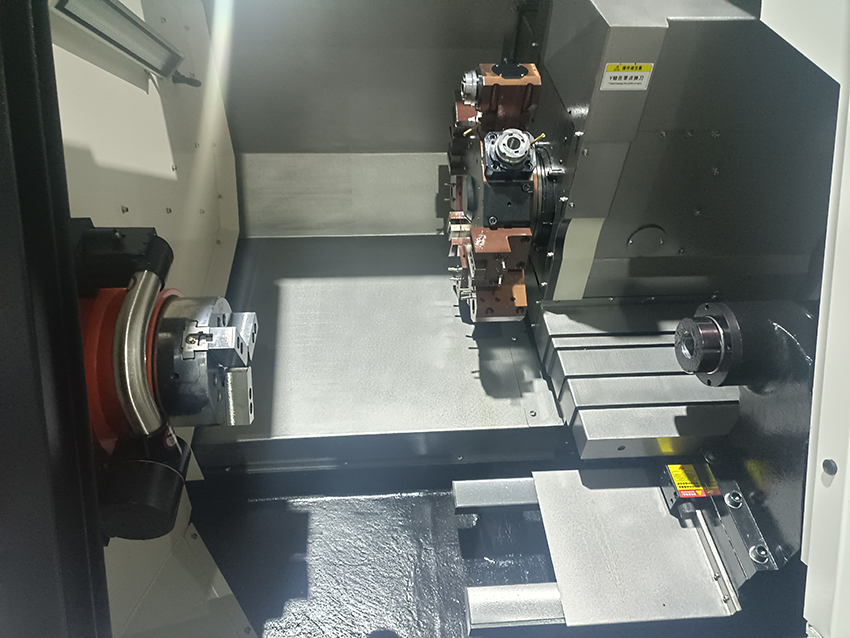

Interior view
