1.35°integrated slant bed, step type roller linear guideway.
2.Spindle driven by built-in motor directly, realize “zero transmission”. Compact design, light weight, low vibration, low thermal deformation.

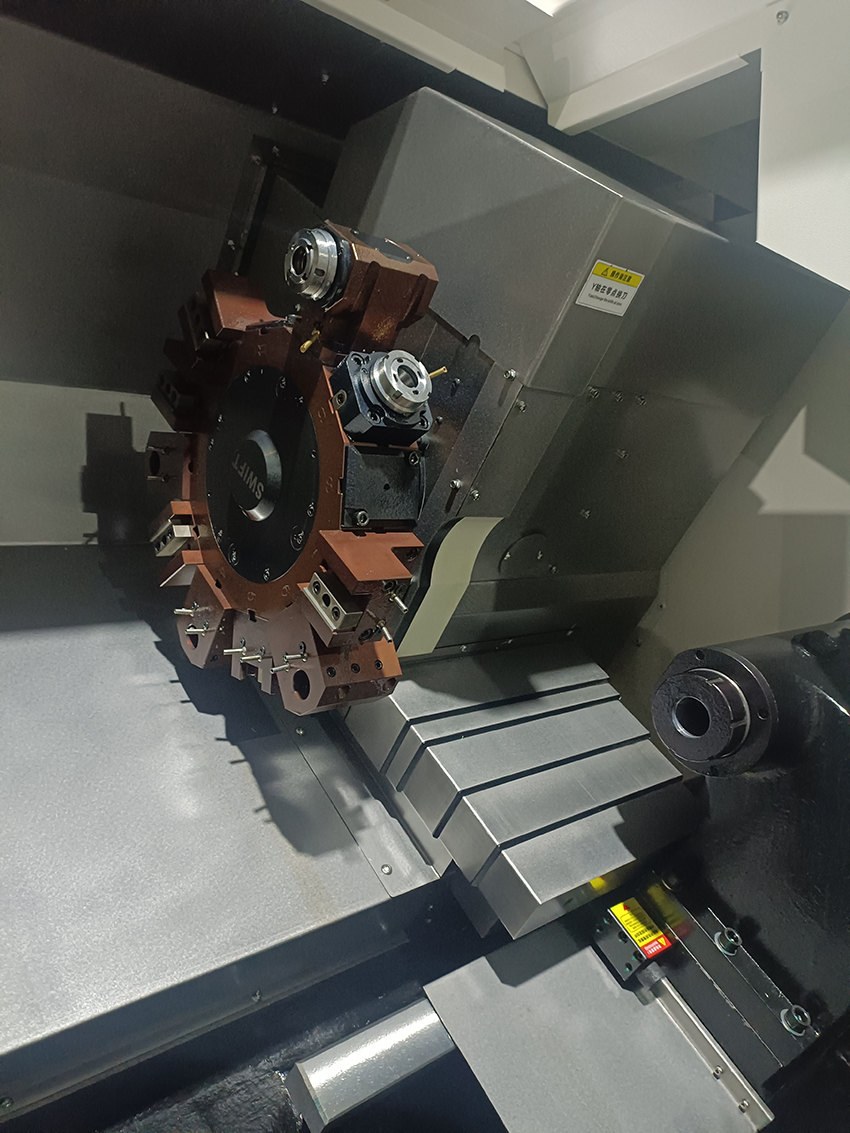

3.Integrated power turret structure, and the high-precision 3-pc end-scale clutch is positioned to ensure positioning accuracy and clamping rigidity.

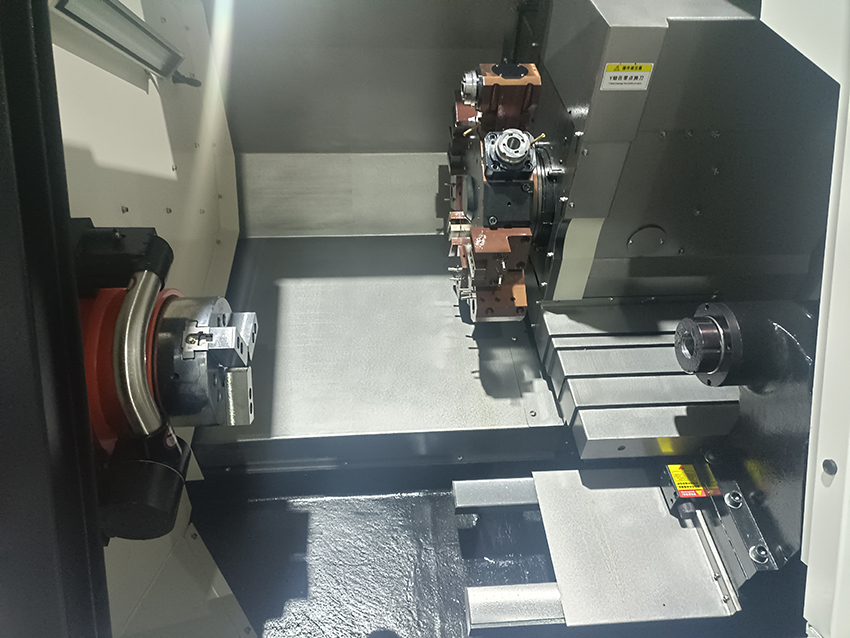

4.The electro-spindle, hydraulic through chuck and power turret with Y axis, suitable for complex shaft and plate workpiece processing.
5.TC-560MY servo programmable tailstock, high rigidity and high accuracy.
