CNC Swiss-type Lathe Frame/Body

SL-265A

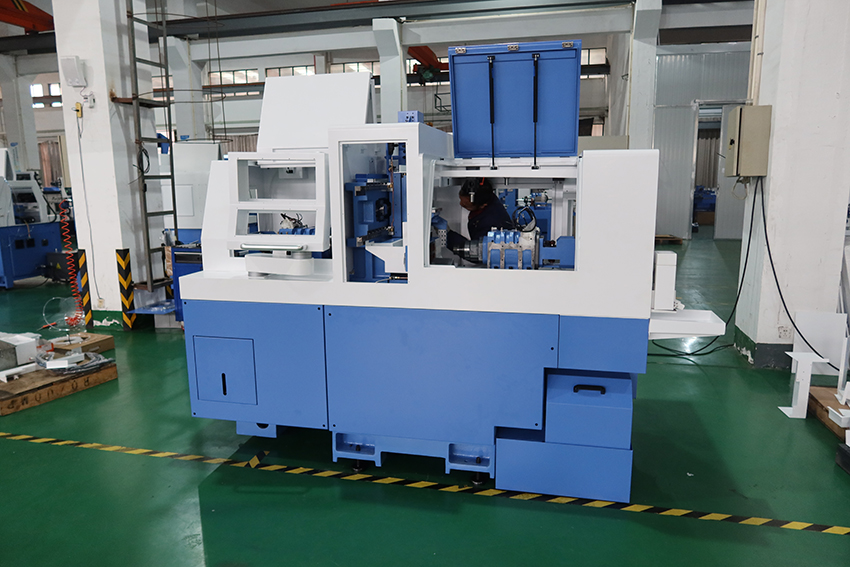

We can supply the frame/body of all models of CNC Swiss-type lathe, just SL-265A as an example.

+86-139-6977-9960

Inquiry

Performance characteristics

Machine Specification

Interior view

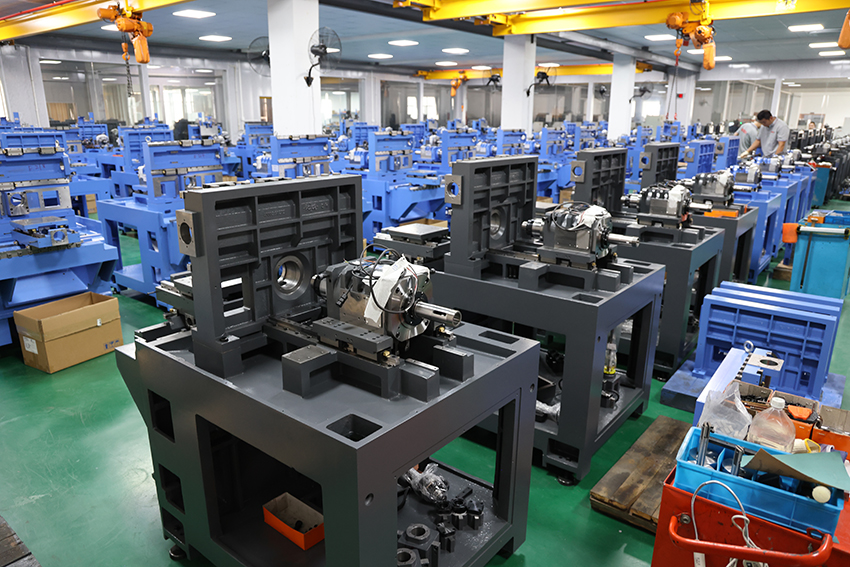

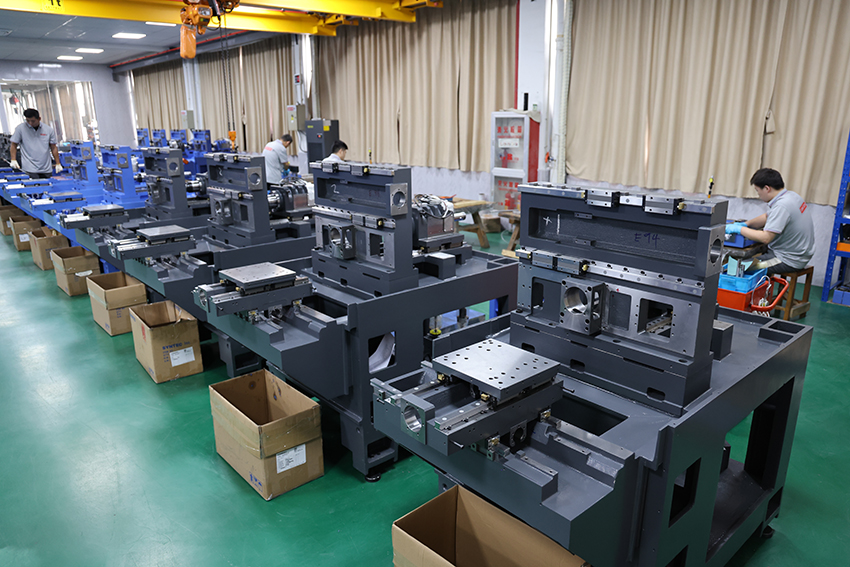

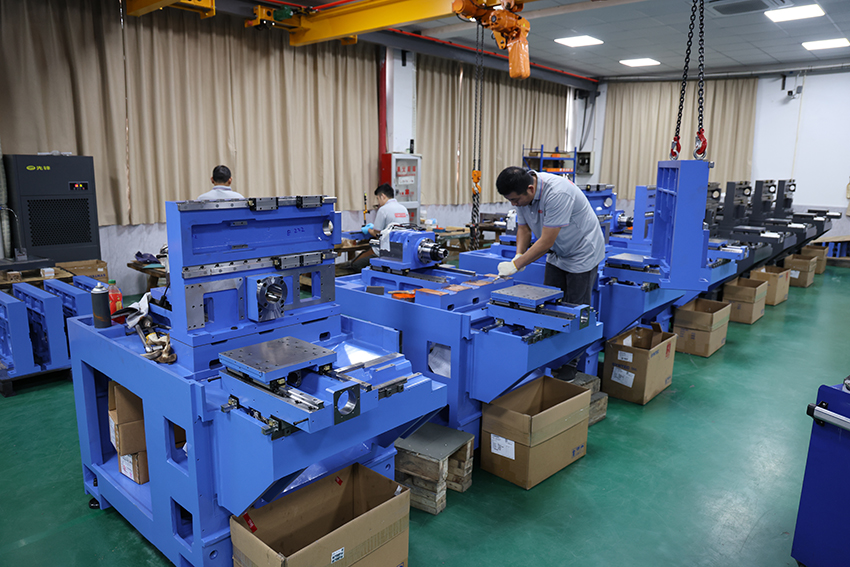

1.Frame/body is available for all models.

2.OEM production: accept drawings, samples and various special requirements, accept customized production.

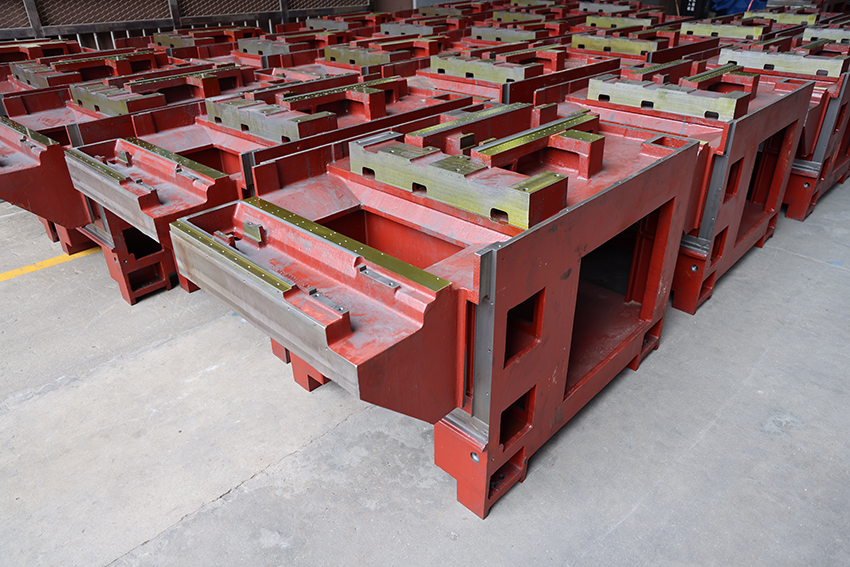

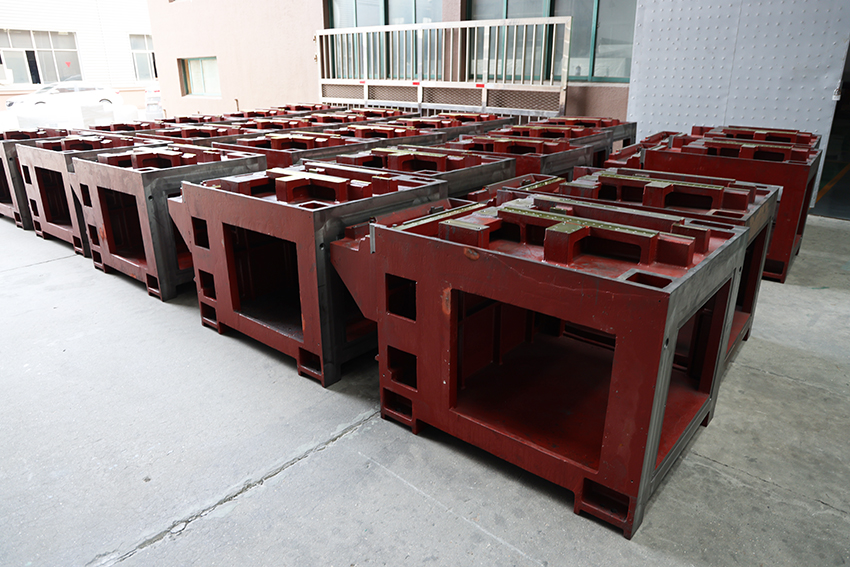

3.We have our own foundry factory with an annual production capacity of 15 million tons of castings.

4.We have a variety of high-precision machining centers, turning centers and high performance testing equipment.

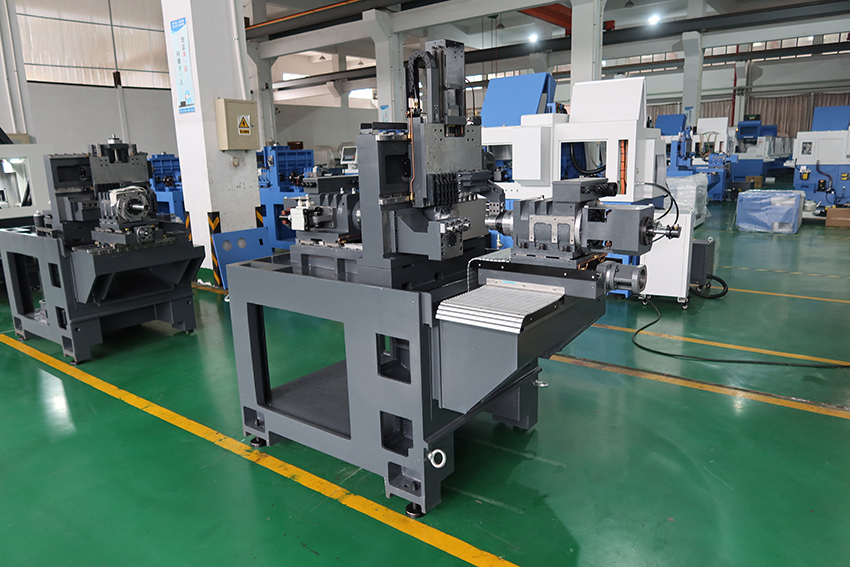

5. SL-265A body include:Body/base; All axis plate and ball screw and guideway; Spindle and sub spindle box; Spindle and sub spindle clamping mechanism (including clamping cylinder); Non-guide bush accessories; Key type rotary guide bush accessories; Spindle and sub spindle fixed gang tool; Spindle side 4 station living tool holders; Spindle end 4 station hangers; Lubrication pipes (not include lubrication pump); Leveling wedges and bolts; Sub spindle front workpiece release device(including air cylinder); Main sheet metal cover (guard); Coolant tank (not includ



MODEL

SL-265A







Machining

capacity

Max. turning dia.

Φ26mm

Spindle bore dia.

Φ30mm


Max. machining length

Without guide bush

2.5D(Max. 50)mm

Fixed guide bush

220mm(optional)

Rotary guide bush

180mm

Max. back spindle clamping dia.

Φ26mm

Max. spindle drilling dia.

Φ10mm

Max. spindle tapping dia.

M10(mm)

Max. back spindle drilling dia.

Φ10mm

Max. back spindle tapping dia.

M8(mm)

Max. radial live tool drilling dia.

Φ8mm

Max. radial live tool tapping dia.

M6(mm)

Max. back live tool drilling dia.

Φ8mm(optional)

Max. back live tool tapping dia.

M6(mm)(optional)




Mechanical

capacity

Spindle speed

10000 (rotary guide bush 8000)rpm

Back spindle speed

10000rpm

Radial live tool speed

5000rpm

Back live too speed

6000rpm(optional)

Rapid moving speed

24(X2, Y1, Z1, Z2)m/min

20(X1)m/min

Spindle runout accuracy

≤0.002mm

Repeated positioning accuracy

≤0.003mm


Tool

system

O.D. tool

1(□16)+5(□12)

Axial machining tool

4(ER16)

Radial live tool

2(ER11)+2(ER16)

Back machining tool

4(ER16)+1(Φ20)



Motor

power

Main spindle

3.7kW or 4.2kW

Back spindle

3.1kW

Linear drive axis

1kW(X1, X2, Y1, Z1)

0.75kW(Z2)

Radial live tool

1kW

Back live tool

0.75kW(optional)

Coolant pump

0.4kW

Others

Overall dimensions

2380x1300x1770mm

Weight (with sheet metal)

2000kg


Main parts brand

NO.

NAME

BRAND

ORIGIN

1

Spindle   (servo electro spindle)

TURNTECH

CHINA

2

Spindle bearing

NSK(P4)

JAPAN

3

Ball   screw bearing

NSK/NACHI

JAPAN

4

Ball screw

HIWIN/PMI/THK

TAIWAN/JAPAN

5

Linear   guideway

HIWIN/PMI/THK

TAIWAN/JAPAN

6

Coupling

KTR-ROTEX

GERMANY

7

Locking   nut of spindle and ball screw

YINSH

TAIWAN
