Front Axial Live Tool Holder

Plug-in attachments for quick and easy installation and replacement; axial installation, radial installation (optional extended side power unit required for spindle).

+86-139-6977-9960

Inquiry

Performance characteristics

Machine Specification

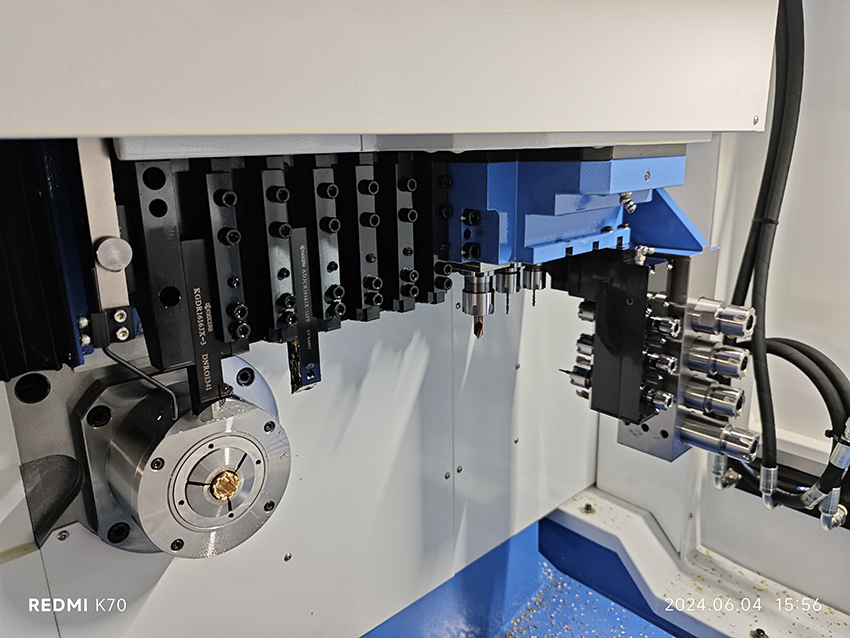

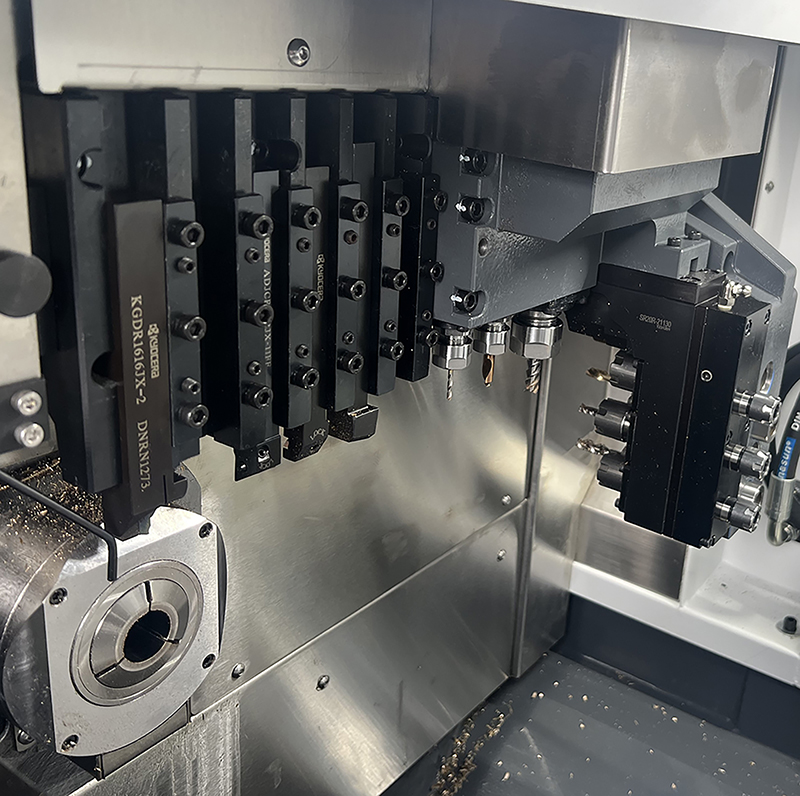

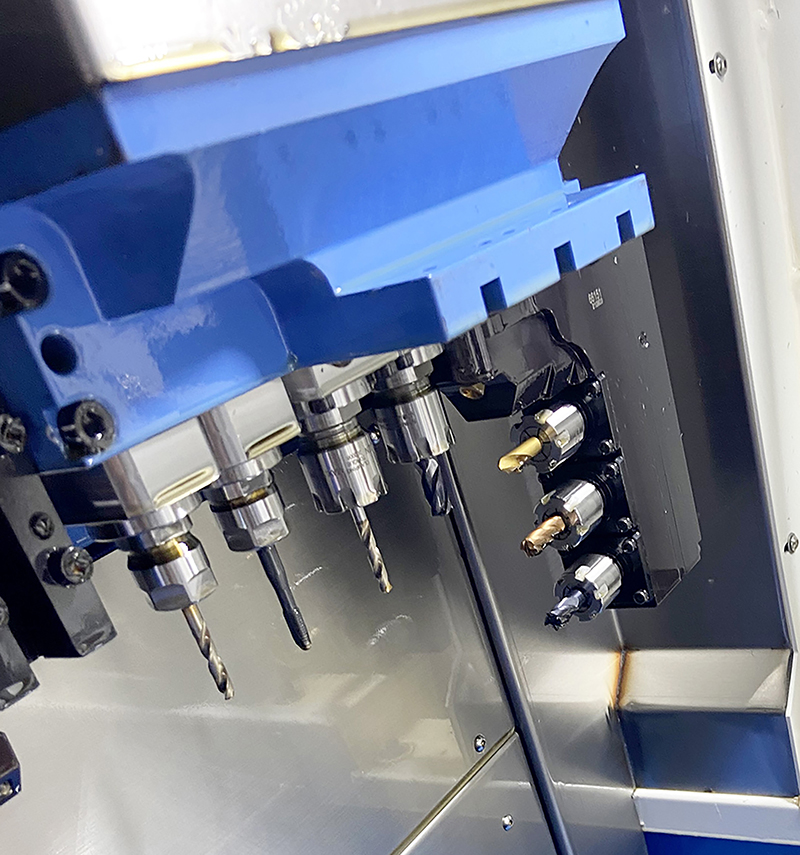

Interior view

1.Plug-in attachments for quick and easy installation and replacement.

2.Max. 6000r/min.

3.It can be installed axially and radially (spindle requires optional extended side power unit).


Front   axial live tool holder

Order No.

04-4004

Max. speed

6000   r/min

Collet specification

Main spindle:   3×ER16

Back   spindle: 3×ER11

Suitable model

SL-205A/265AT14/T15 tool position

(Distance between axes31mm)

SL-205H/206H/265H/266HT14/T15/T16 tool position

(Distance between axes31mm)

SL-325A/326A/385A/386AT14/T15 tool position

(Distance between axes34mm)
