1. Plug-in attachments for quick and easy installation and replacement.
2. Max. 6000r/min.
3. 0~90 degree angle manually adjustable.
1. Plug-in attachments for quick and easy installation and replacement.
2. Max. 6000r/min.
3. 0~90 degree angle manually adjustable.

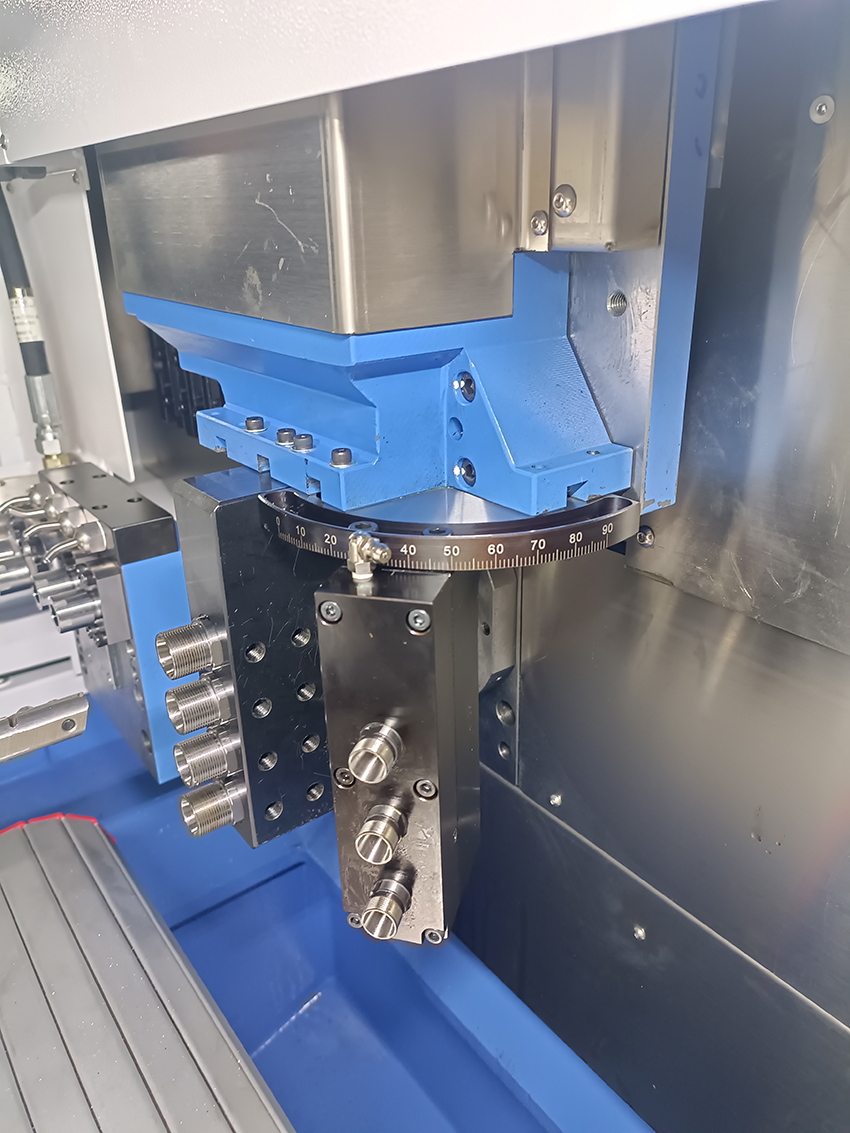

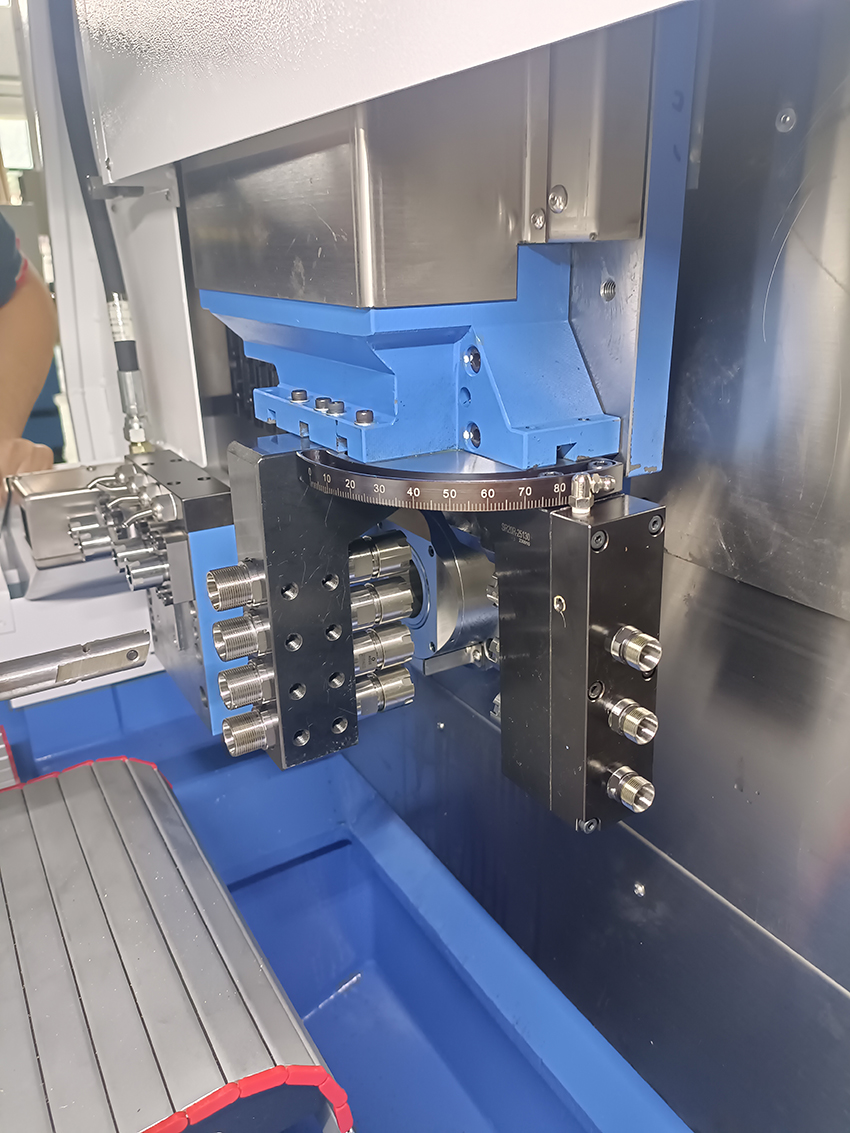

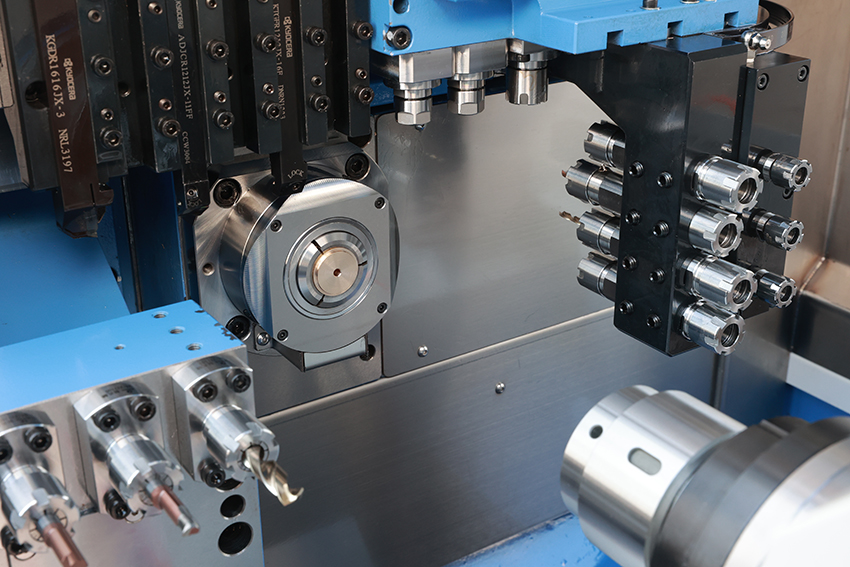

Front adjustable live tool holder (Manual B axis) | |
Order No. | 05-5005 |
Max. speed | 6000 r/min |
Collet specification | Main spindle: 3×ER16 Back spindle: 3×ER11 |
Suitable model | SL-205A/265A：T15 tool position (Distance between axes：31mm) |
SL-205H/206H/265H/266H：T16 tool position (Distance between axes：31mm) | |
SL-325A/326A/385A/386A：T15 tool position (Distance between axes：34mm) | |
