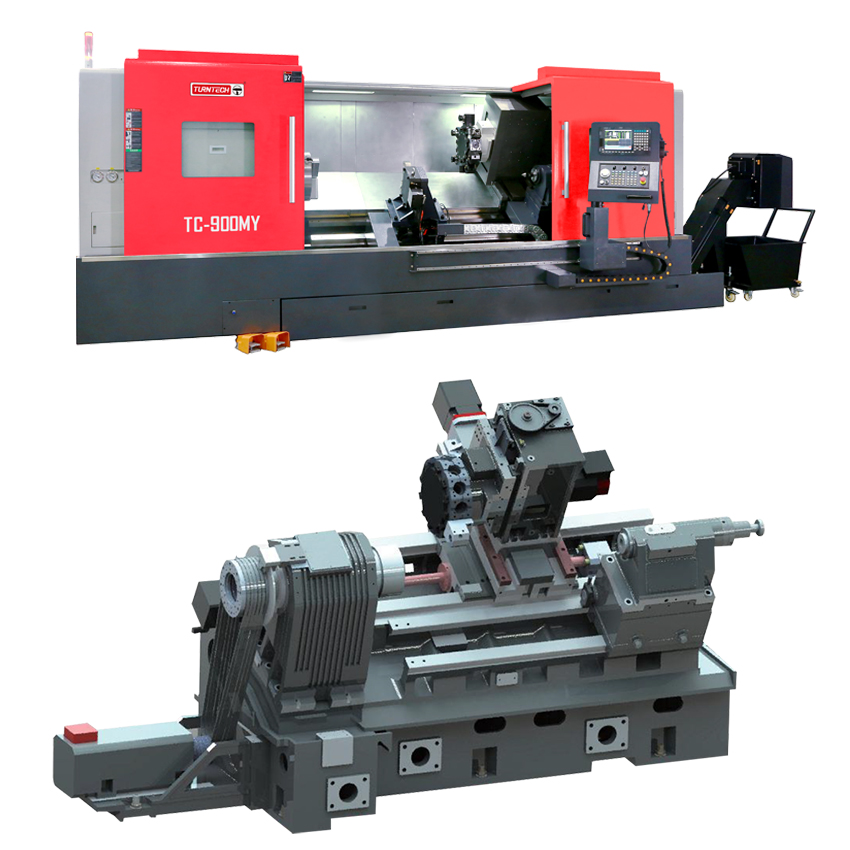

1. High rigidity & stable structure

FEM-designed 45° slant bed with low center of gravity. Reinforced ribs resist torsion and deformation, ensuring maximum rigidity and machining stability.

2. Rigid spindle headstock

High-density cast iron structure with external ribs. Double-row roller bearings deliver high-rigidity power transmission, enabling heavy-duty cutting performance. The spindle is available in 5 specifications (∅132-∅375mm), significantly expanding the machining range and offering users versatile operational solutions.

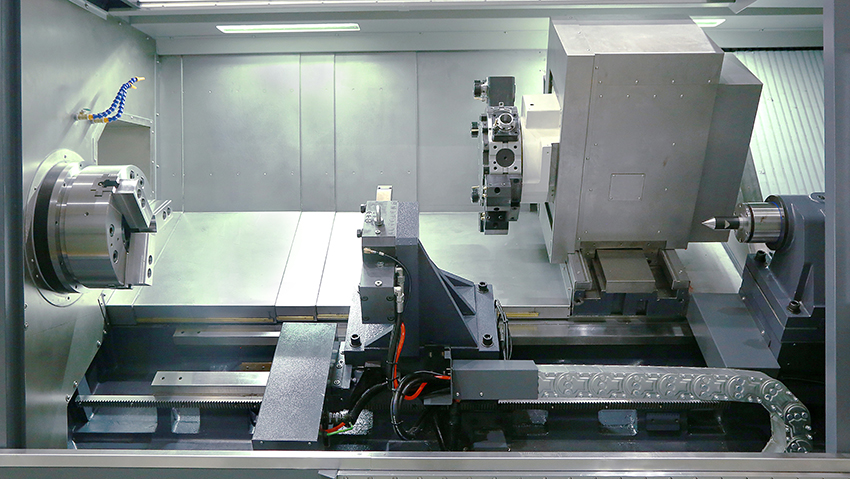

3. Hydraulic fully automatic programmable tailstock

M-code controlled full automation: Hydraulic motor drives rack-and-pinion for whole movement; Hydraulic cylinder actuates sleeve and locks the body.

4. Advanced options

Linear scales, BF gear box, high-pressure through-spindle coolant, servo-programmable tailstock (M-code), hydraulic-servo programmable steady rest, dual chucks for pipe threading etc.

5. Rail system options

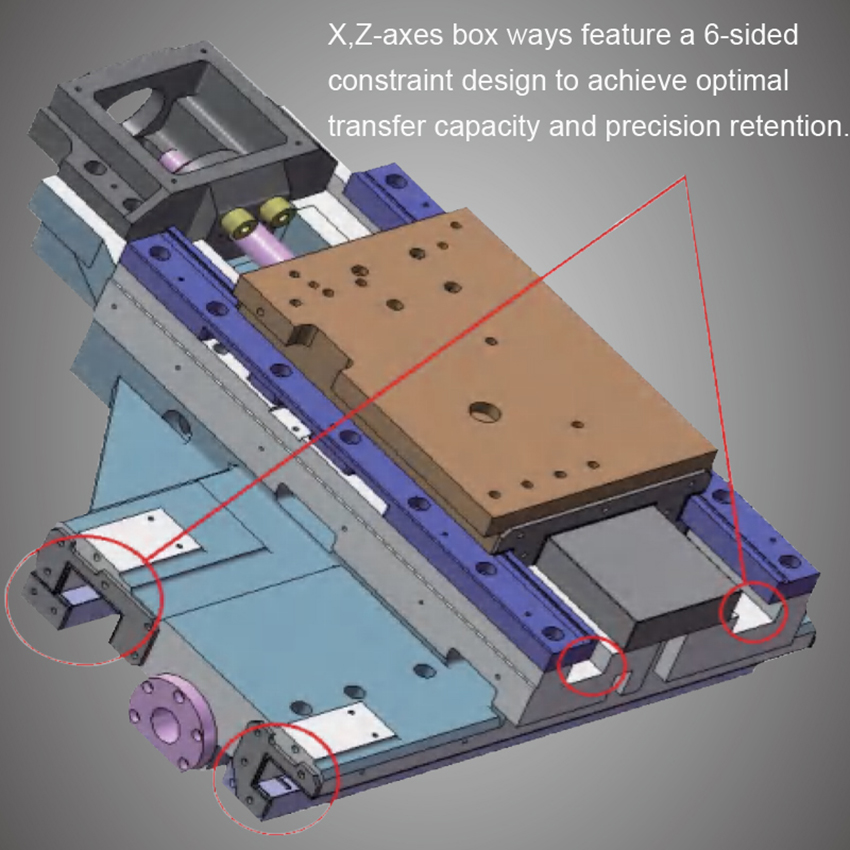

Standard: Full linear guideways. Tailstock uses high-frequency induction hardened ways with widened surfaces and hand-scraped finishes for maximum rigidity.

Optional: Hardened ways or inlaid steel guideways for exceptional wear resistance and precision retention.

6. Applications

Suitable for large pipe and shaft machining. Ideal for oil & gas pipelines, flanges, construction machinery hydraulic parts, aerospace, and shipbuilding components.
